Nylon PA610 Resin

Polyamide 610 - Nylon 610 - PA 610

PA610 Molecular Formula:(C16H30N2O2)n

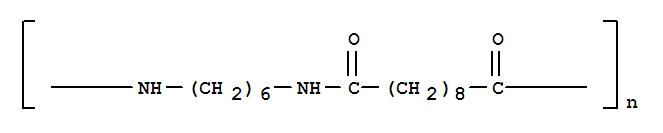

PA610 Structural Formula:

PA610 Features:Compare with the the Nylon 6 and the Nylon 66, the nylon 610 is more softer, has low water absorption, better resistance to low temperature and dimensional stability. It has good oil resistance, chemical resistance and electric specification, belongs to the selfextingushing material.

PA610 Application:

It is mainly used as the toothbrush's bristlelike monofilament, filaments for brushes,monofilament, battery case,cable covering, zip fasteners, slide way,electrical insulators and precision parts,etc.

PA610 Index:

Test Items	UNIT	Standard Parameter Value
		Ⅰ	Ⅱ	Ⅲ
Viscosity Number	g/ml	105±15	135±15	180±20
Loss on Drying	‰	≤1.0
Granularity	N/g	30-50
Melting Point	℃	208-222
Relative Density	G/cm3	1.08-1.12
Tensile Strength	MPa	≥55
Elongation At Break	%	≥150
Flexural Strength	MPa	≥60

Test Items	UNIT	PA610 Resin
Test Items	UNIT	A6G6301	A6G7301	A6MG9301	A6G9301-G
Tensile Strength	MPa	114	146	153	161
Elongation At Break	%	502	317	426	295
Charpy Notch Impact	KJ/m2	27	18	16	19
Charpy Non-Notch Impact	KJ/m2	93	96	88	82
Flexural Strength	MPa	156	202	228	230
Flexural Module	MPa	5100	7600	9325	9675
Ash Content	%	30	35	45	45

* Note:Tell me about your parameters, Lyuechem company will give you a more satisfactory answer.
